Nonstructural Tabs

For the 2022-2023 Baja competition season, I was responsible for the design, manufacturing, and installation of the nonstructural tabs.

Summary

What:

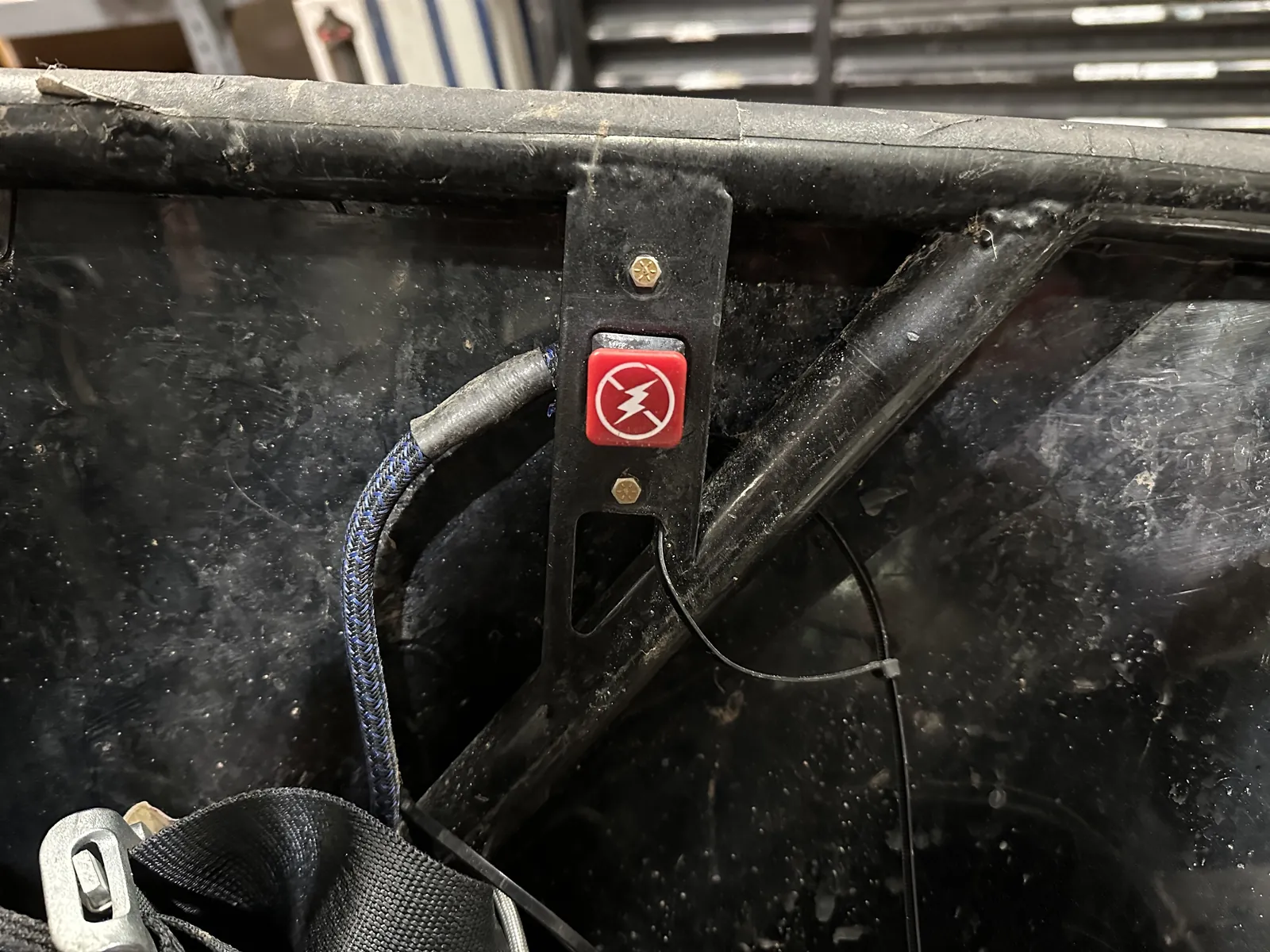

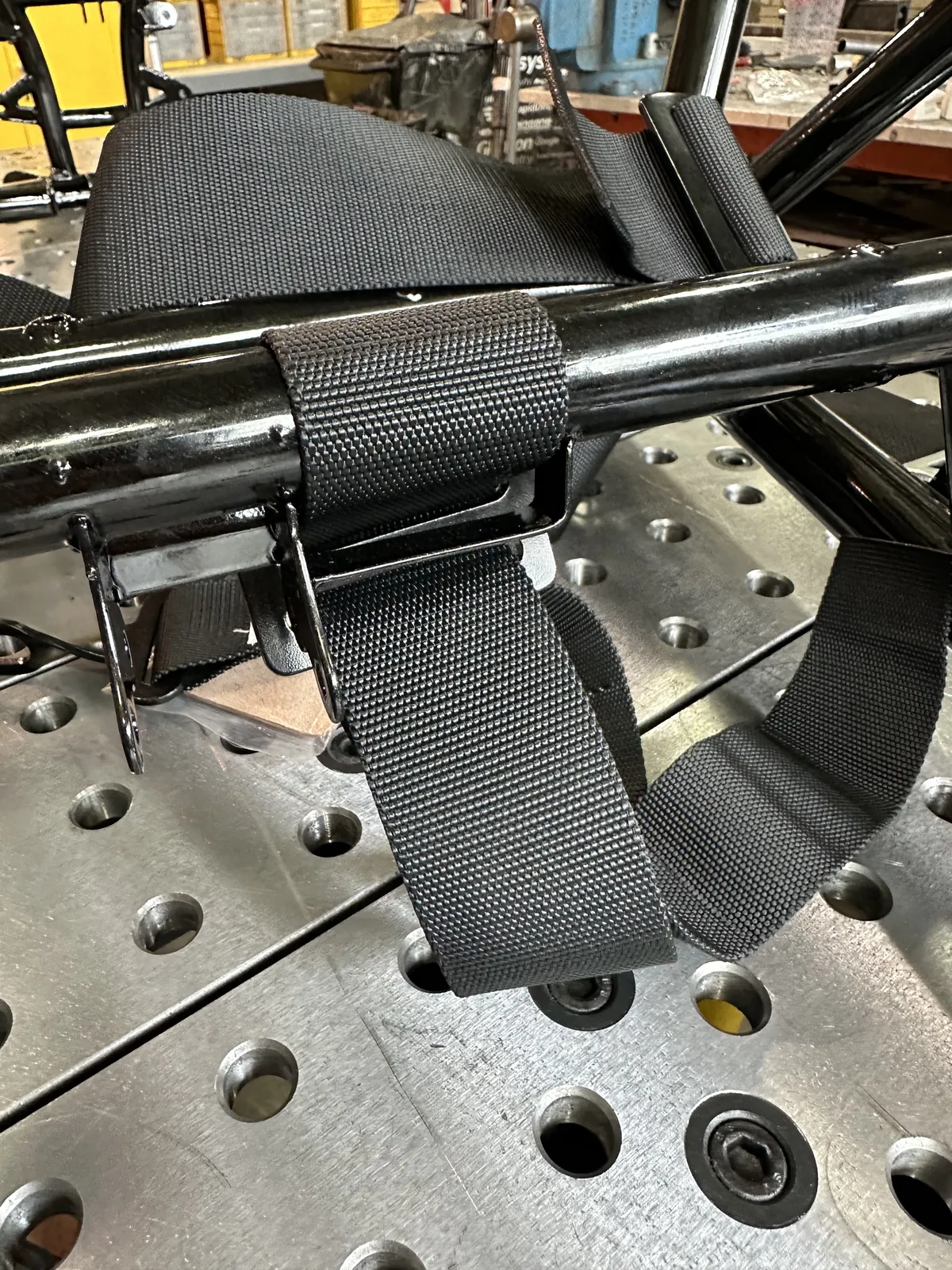

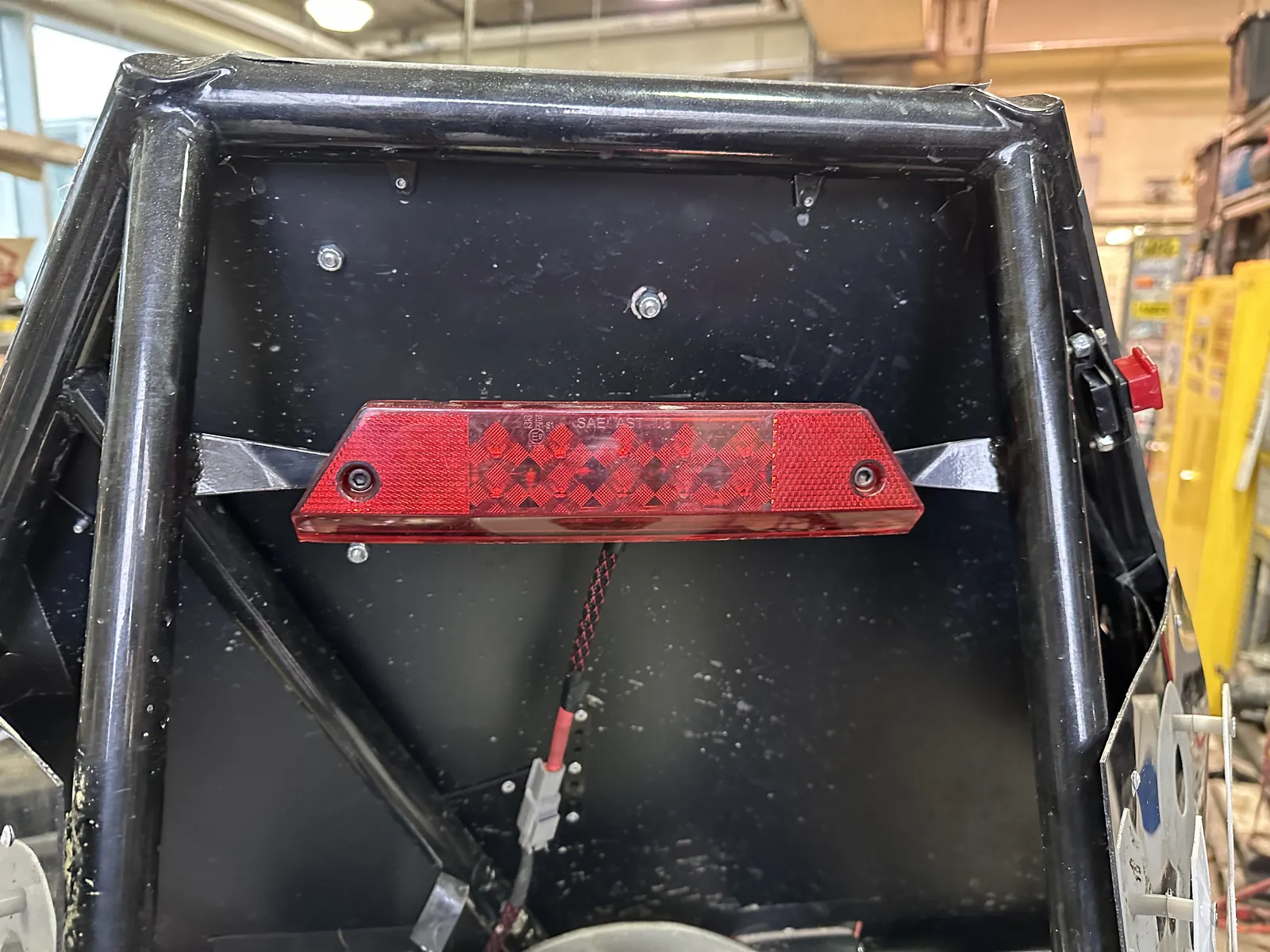

• Affix non-structural components to the car

• e.g. body panels, seat, kill switches, driver restraints, fire extinguisher, etc

• Be as lightweight as possible

How:

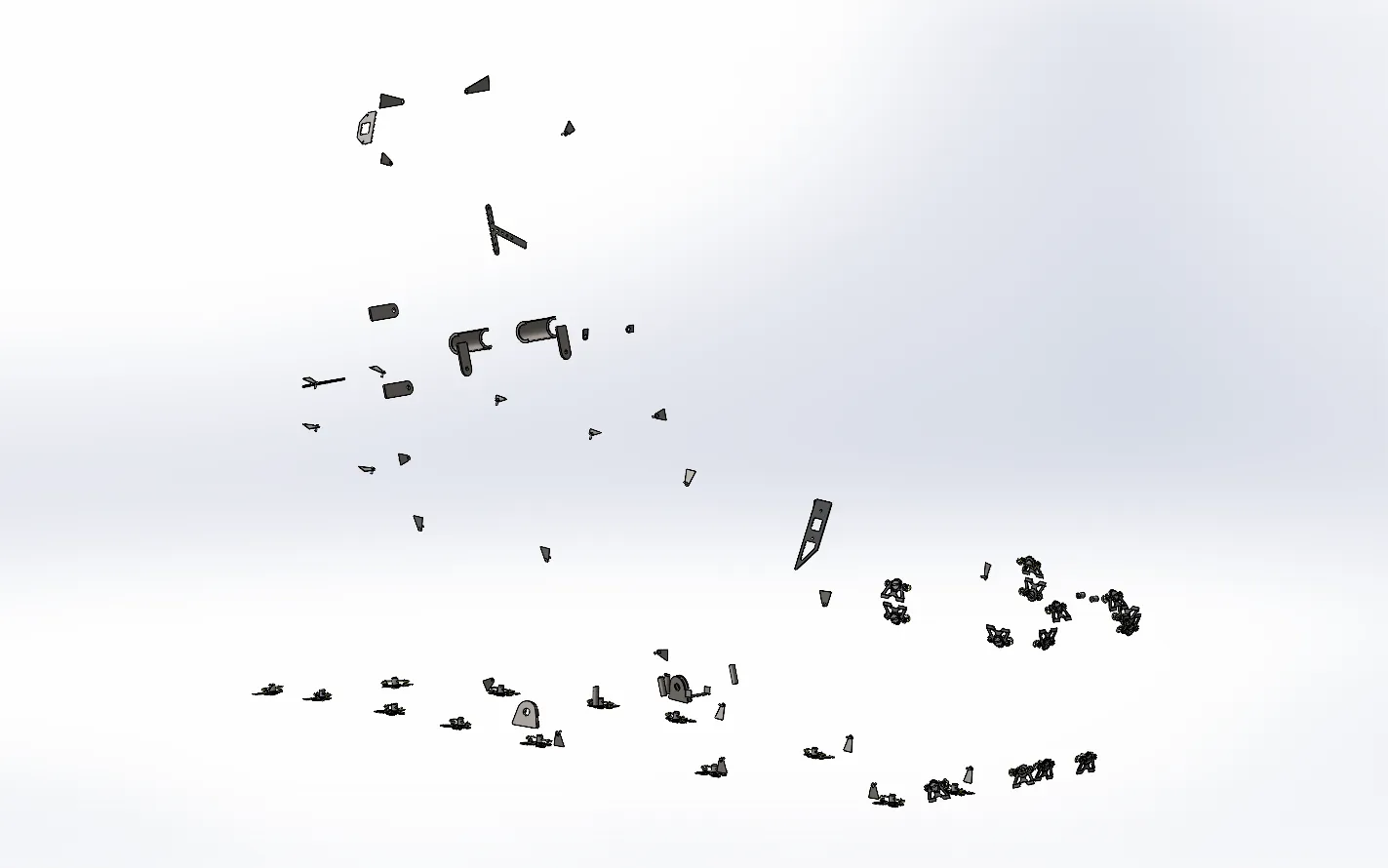

• Designed with SolidWorks

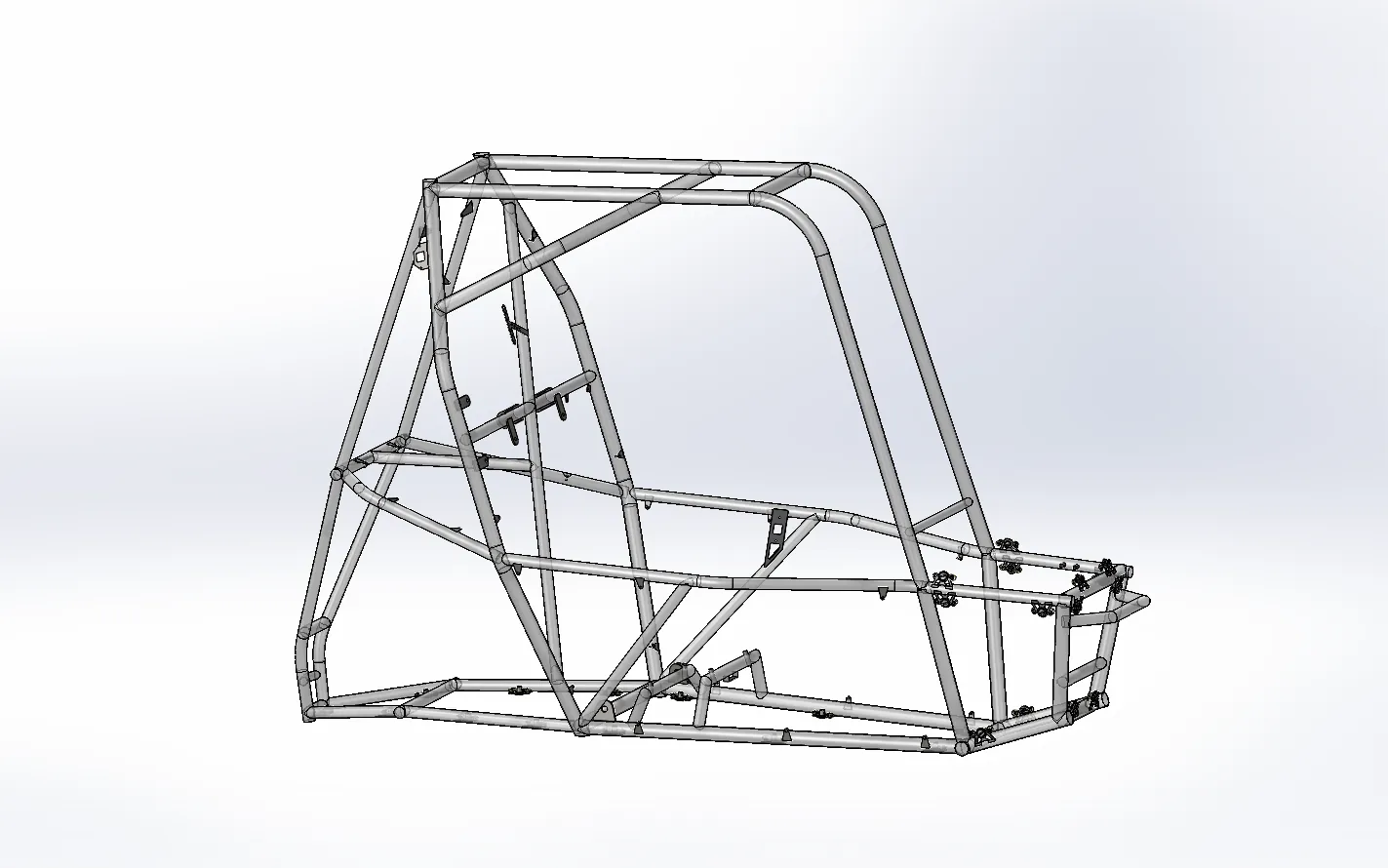

• Matched geometry of chassis and mounting components

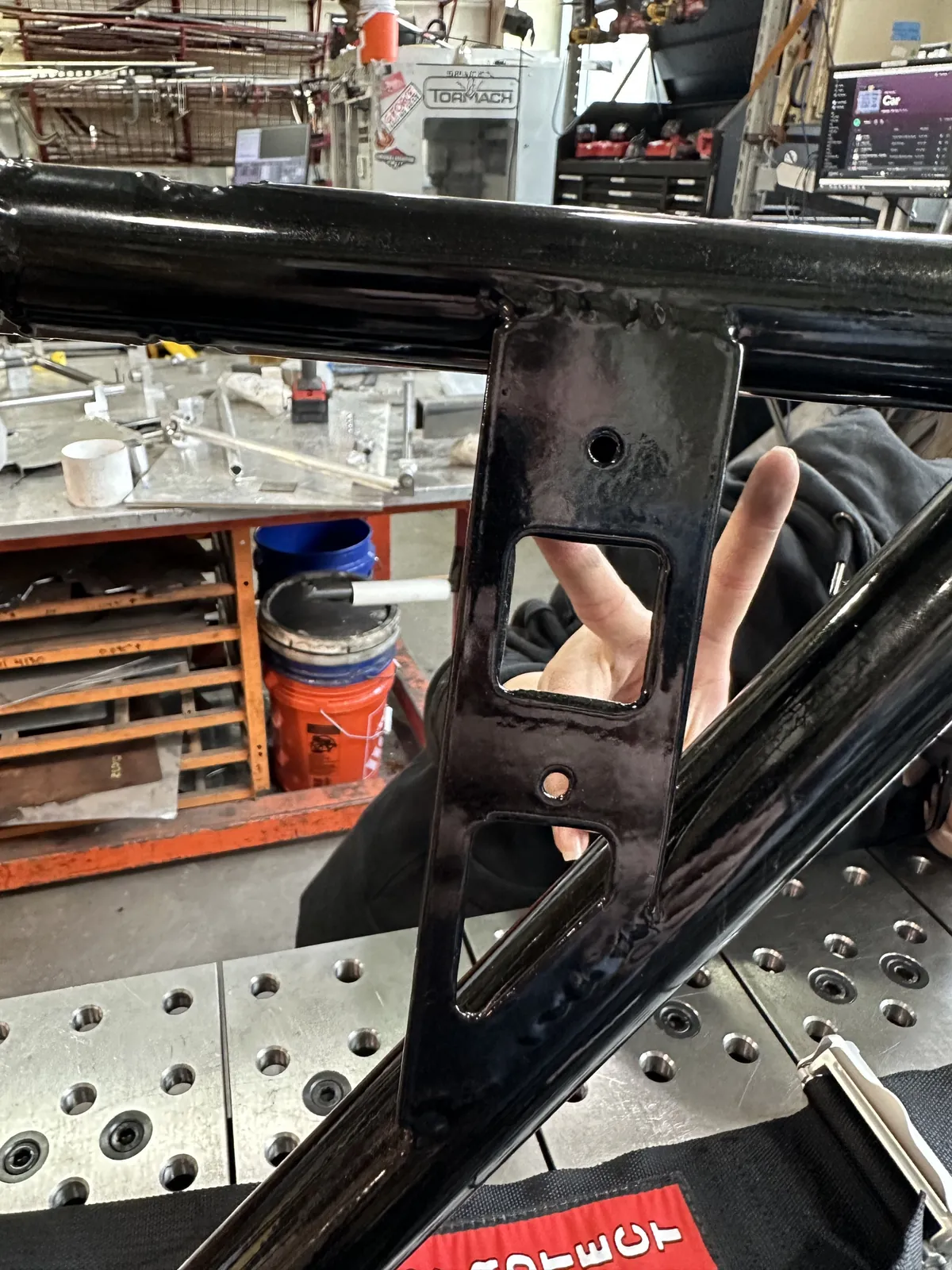

• Parts were laser cut and welded to frame

Result:

• Non-structural components mounted precisely and efficiently

Skill:  CAD Introduction
